Working Current ≤ 100mA tactile metal dome switch designed for operation in temperature conditions between -20°C and 70°C

Product Description:

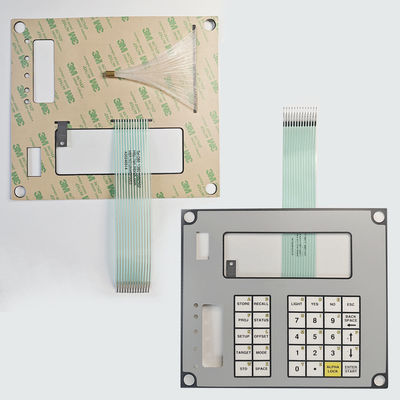

The Metal Dome Membrane Switch is a highly reliable and durable input device designed for various electronic applications, offering exceptional performance and tactile feedback. Known for its long lifecycle, this membrane switch pad is engineered to withstand up to 1,000,000 cycles, making it an excellent choice for devices that require frequent user interaction without compromising on responsiveness or durability.

One of the standout features of this tactile metal dome switch is its robust operating temperature range. It functions efficiently within a broad temperature spectrum, from -20°C to +70°C, ensuring consistent performance in diverse environmental conditions. Additionally, the metal dome tactile switch can be safely stored at temperatures ranging from -30°C to +80°C, which provides flexibility for various storage and transportation scenarios without degrading its quality or functionality.

The adhesive used in this membrane switch pad is of premium quality, typically utilizing 3M adhesive or customized options based on specific customer requirements. This ensures a strong and reliable bond to the device surface, preventing any detachment or misalignment during use. The adhesive layer also plays a crucial role in maintaining the overall structural integrity of the switch, contributing to its long lifecycle and stable operation.

In terms of electrical specifications, the metal dome tactile switch is rated for a voltage of ≤50V DC. This rating makes it suitable for a wide range of low-voltage electronic applications, providing safe and efficient switching capabilities. The tactile feedback provided by the metal dome design enhances user experience by delivering a crisp and satisfying click sensation, confirming each keypress with precision.

Manufactured with high-quality materials and advanced technology, the tactile metal dome switch ensures excellent conductivity and quick response times. The metal domes are designed to provide uniform pressure distribution and consistent tactile feedback, which is critical for applications requiring accurate and reliable input detection. This makes the membrane switch pad ideal for use in medical devices, industrial control panels, consumer electronics, and other environments where dependable operation is essential.

Furthermore, the compact and low-profile design of the metal dome membrane switch enables easy integration into various device configurations without adding significant bulk. Its slim construction allows designers to maintain sleek and ergonomic product designs while still offering robust tactile functionality. The flexibility in customization options, including the choice of adhesive and layout design, allows this metal dome tactile switch to be tailored to meet specific application needs.

Overall, the Metal Dome Membrane Switch combines durability, reliability, and excellent tactile feedback in a compact form factor. Its impressive lifecycle of 1,000,000 cycles, wide operating and storage temperature ranges, high-quality adhesive, and suitable voltage rating make it a versatile solution for numerous electronic interface applications. Whether you are designing a new control panel, upgrading an existing system, or seeking a reliable membrane switch pad for your product, this tactile metal dome switch offers outstanding performance and longevity.

Features:

• Product Name: Metal Dome Membrane Switch
• Working Current: ≤ 100mA
• Feature: Embossed and Tactile for enhanced user experience
• Humidity Resistance: +40 °C, 90% ~ 95% for 240 hours
• Insulation Resistance: Greater than 100 Megaohms
• Adhesive: 3M or Customized options available
• Designed as a tactile membrane keypad offering reliable feedback
• Incorporates metal dome tactile switch technology for durability
• High-quality metal dome tactile switch ensures consistent performance

Technical Parameters:

Applications:

The Metal Dome Membrane Switch, offered by OEM/LF, is a versatile and reliable input device designed for a wide range of application occasions and scenarios. Manufactured in Shenzhen and certified under ISO9001:2015, this tactile metal dome switch is ideal for industries where durability, precision, and user feedback are critical. With its embossed and tactile features, the Metal Dome Membrane Switch ensures excellent tactile feedback, making it perfect for environments that require responsive and reliable control interfaces.

In industrial settings, the Metal Dome Membrane Switch is commonly used in control panels, machinery operation consoles, and automation equipment. Its robust design can withstand operating temperatures ranging from -20°C to +70°C, allowing it to perform reliably under harsh conditions. The insulation resistance of over 100 megaohms guarantees electrical safety and performance consistency, which is essential for industrial automation and manufacturing processes.

Consumer electronics also benefit greatly from the tactile metal dome switch technology. Devices such as remote controls, medical instruments, and household appliances utilize these switches to provide users with precise control and a satisfying tactile response. The flexibility in adhesive options, including 3M or customized adhesives, allows for easy integration into various product designs and surfaces, enhancing the overall user experience.

OEM/LF’s Metal Dome Membrane Switch is also well-suited for automotive applications, where reliable and tactile input devices are essential for navigation systems, dashboard controls, and other in-car electronics. The product's customizable features and minimum order quantity of just 1 piece make it an excellent choice for prototype development and small-batch production runs.

Packaging options are flexible, with PE bags, cartons, or other packaging methods available according to customer requirements. Pricing is based on the specific design, and payment terms are TT in advance, with delivery times to be discussed to best meet client needs. As an OEM-capable product, the Metal Dome Membrane Switch can be tailored to meet unique specifications, ensuring it fits seamlessly into any project or product line.

Overall, the Metal Dome Membrane Switch from OEM/LF stands out as a dependable, customized solution for a variety of industries, providing tactile, embossed feedback and high electrical performance in a compact and durable form factor.

Customization:

Our Metal Dome Membrane Switch product, branded OEM/LF and model number OEM/LF, is designed and manufactured in Shenzhen with ISO9001:2015 certification, ensuring high quality and reliability. We specialize in providing fully customizable tactile membrane keypad solutions that incorporate metal dome tactile switches for enhanced tactile feedback and durability.

We offer customization services tailored to your specific requirements, including the use of 3M adhesives such as 3M467 and 3M9080, or other customized adhesive options to ensure optimal installation and performance. The rear adhesive options provide strong bonding suitable for various applications.

The Metal Dome Membrane Switch features embossed and tactile designs to deliver excellent user experience with a rated voltage of ≤50V DC, making it suitable for a wide range of electronic devices. OEM services are available to meet your unique design and branding needs.

Packaging is flexible and can be done in PE bags, cartons, or according to the customer's request to protect the tactile membrane keypad during shipping and handling. Our minimum order quantity is 1 piece, and pricing is based on the design specifications provided.

Delivery time is to be discussed to best accommodate your production schedule, and payment terms require TT in advance for secure transactions. Trust our expertise to provide high-quality metal dome tactile switches that meet your product customization needs efficiently and professionally.

Support and Services:

Our Metal Dome Membrane Switches are designed to provide reliable tactile feedback and long-lasting performance in a variety of applications. For technical support, please ensure that you have the product model number and specifications available when seeking assistance.

We offer comprehensive services including product customization, design consultation, and troubleshooting guidance to help you integrate the Metal Dome Membrane Switch into your projects effectively.

Our support team can assist with issues related to switch responsiveness, durability, environmental resistance, and electrical characteristics to ensure optimal operation.

For maintenance, we recommend keeping the switch surface clean and avoiding exposure to extreme conditions beyond the specified operating range. Proper installation is crucial to maintain the switch’s performance and longevity.

Documentation, including datasheets and installation guides, is available to help you understand the technical aspects and correct usage of the Metal Dome Membrane Switch.

We are committed to providing prompt and expert assistance to address any questions or concerns you may have throughout the lifecycle of the product.

Packing and Shipping:

Product Packaging:

The Metal Dome Membrane Switch is carefully packaged to ensure maximum protection during transit. Each switch is individually placed in anti-static bags to prevent electrostatic discharge damage. The switches are then arranged in sturdy, custom-sized boxes with cushioning materials to avoid any physical damage. For bulk orders, multiple boxes are securely packed into reinforced cartons, clearly labeled with product information and handling instructions.

Shipping:

We offer reliable shipping options to meet your needs, including standard, expedited, and international delivery services. All shipments are tracked and insured to guarantee safe arrival. Our logistics partners ensure timely delivery, and we provide you with tracking details once your order is dispatched. Special handling requests and packaging specifications can be accommodated upon request to ensure your Metal Dome Membrane Switches arrive in perfect condition.

FAQ:

Q1: What is the brand and model number of the Metal Dome Membrane Switch?

A1: The brand name and model number of the Metal Dome Membrane Switch are both OEM/LF.

Q2: Where is the Metal Dome Membrane Switch manufactured?

A2: The Metal Dome Membrane Switch is manufactured in Shenzhen.

Q3: Is the Metal Dome Membrane Switch certified?

A3: Yes, the Metal Dome Membrane Switch is certified with ISO9001:2015.

Q4: What is the minimum order quantity for the Metal Dome Membrane Switch?

A4: The minimum order quantity for the Metal Dome Membrane Switch is 1 piece.

Q5: How is the Metal Dome Membrane Switch packaged and what are the payment terms?

A5: The product is packaged in PE bags and cartons or according to the customer's request. Payment terms are TT in advance.
